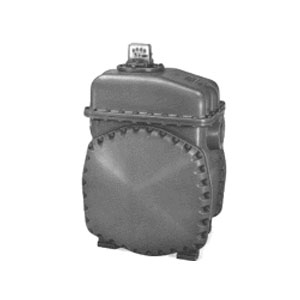

AL5000

Elster American Meter’s aluminumcase meters are designed to provide positive displacement accuracy for industrial or commercial loads Temperature compensation available from -30°F to 140°F (-34°C to 60°C) 5000 SCFH (141.6 m3/h) (0.60 specific gravity gas) at 1/2-inch W.C. differential AMR/AMI compatibility Meets ANSI B109.2 specifications The AL-5000 is ideally suited for commercial and industrial installations…. Read more

Contact Us

Description:

Elster American Meter’s aluminumcase meters are designed to provide positive displacement accuracy for industrial or commercial loads

Advantages

  • Temperature compensation available from -30°F to 140°F (-34°C to 60°C)
  • 5000 SCFH (141.6 m3/h) (0.60 specific gravity gas) at 1/2-inch W.C. differential
  • AMR/AMI compatibility
  • Meets ANSI B109.2 specifications

Applications

The AL-5000 is ideally suited for commercial and industrial installations. It is unequaled for accuracy retention and for life cycle maintenance economies.

Options

  • Regular or Temperature Compensated
  • Pointer or odometer index
  • 10ft3, 100ft3, or 1.0m3 drive
  • 4” NPT or 4” flanged connection sizes
  • 100 PSIG (6895 mbar) Maximum Allowable Operating Pressure (MAOP)
  • Pressure compensating indexes
  • Standard or UV protected index covers
  • Remote Volume Pulsers
Features
  • Die-cast aluminumcase
  • Oil-impregnated, self-lubricating bushings
  • Molded, convoluted diaphragms for smooth operation and long life
  • Rigid, reinforced flag rods for positive alignment and sustained accuracy
  • Graphite-filled phenolic valves to minimize wear
  • Long-life, low friction, grommet seals
  • Security seals that indicate tampering
Availability
  • Asia-Pacific
