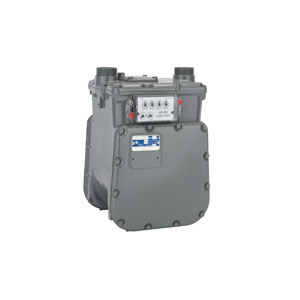

AC630

Designed to meter a variety of gases for large residential/commercial/small industrial applications at pressures up to 25 PSIG and flow rates to 630 SCFH at 1/2” W.C. differential pressure Temperature compensation available from -30°F to 140°F (-34°C to 60°C) 630 SCFH (17.8 m• 3/h) (0.60 specific gravity gas) at 1/2-inch W.C. differential AMI/AMR compatibility Meets… Read more

Contact Us

Description:

Designed to meter a variety of gases for large residential/commercial/small industrial applications at pressures up to 25 PSIG and flow rates to 630 SCFH at 1/2” W.C. differential pressure

Advantages

  • Temperature compensation available from -30°F to 140°F (-34°C to 60°C)
  • 630 SCFH (17.8 m• 3/h) (0.60 specific gravity gas) at 1/2-inch W.C. differential
  • AMI/AMR compatibility
  • Meets ANSI B109.2 specifications
  • Measurement Canada accredited

Applications

The AC-630 is ideally suited for larger residential, commercial and small industrial installations. It is unequaled for accuracy retention and for life cycle maintenance economies.

Options

  • Regular or Temperature Compensated
  • Pointer or odometer index
  • 2ft3 or 0.05m3 drive
  • 20 LT, 30 LT, 45 LT and other connection sizes
  • 25 PSIG (1724 mBar) Maximum Allowable Operating Pressure (MAOP)
  • Pressure compensating indexes
  • Standard or UV protected index covers
  • Meter bars
  • Connection sets
  • Remote Volume Pulsers
  • 7” or 8.25” center-to-center  connections



Features
  • Die-cast aluminum case
  • Oil-impregnated, self-lubricating bushings
  • Molded, convoluted diaphragms for smooth operation and long life
  • Rigid, reinforced flag rods for positive alignment and sustained accuracy
  • Graphite-filled phenolic valves to minimize wear
  • Long-life, low friction, grommet seals
  • Single coat polyester primer with high solids polyurethane top coat
  • Security seals that indicate tampering
Availability
  • Asia-Pacific
