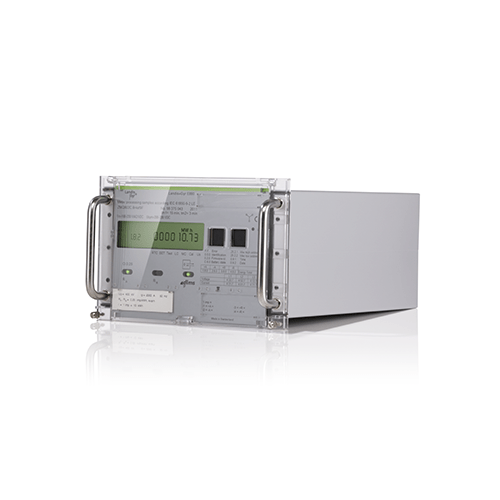

Landis+Gyr E880

The E880 is a high-precision electricity meter designed for transmission networks and digital high-voltage substations with non-conventional instrument transformers (NCIT) according to IEC 61850 standard. The meter uses digital sample values of phase voltages and phase currents as per IEC 61850-9-2 LE for billing and diagnostics. The merging unit’s current and voltage outputs enter the… Read more

Contact Us
  • Accuracy class 0.2S for active energy and 0.5S / 1 for reactive energy
  • Values sampled 80 times per cycle (4000 samples per second at 50Hz, 4800 samples per second at 60Hz)
  • 8-digit liquid crystal display (LCD) for local reading of data
  • Exchangeable communication modules (RS 232 / RS 485 / Ethernet / GSM / GRPS / UMTS (3G))
  • Integrated optical interface and RS485 serial interface with DLMS protocol
  • Communication with several third-party suppliers
  • Up to 8 transmitting contacts (for energy flow, load supervision (Pmax, Qmax), capture period)
  • 4-quadrant measurement (+P -P, +Q -Q, Q1..Q4)
  • Measurement of instantaneous values of phase voltages and currents
  • Phase angle measurement and detection of direction of rotating field
  • Monitoring of instantaneous values of voltage (unbalance, over/undervoltage, outage) and current (unbalance, overcurrent)
  • Voltage dip table
  • Tariff control
  • Time-of-use (TOU)
  • Load profiles
  • Daily snapshot
  • Stored billing value profile
  • Harmonics and total harmonic distortion (THD) monitoring
  • Line and transformer’s loss measurement
  • Total losses of active and reactive power
  • Overload supervision of the line
  • Single phase energy measurement
  • Average demand, maximum and cumulated maximum demand
  • Apparent energy measurement
  • Power factor monitoring
  • Frequency monitoring
  • Bypass feeder operation
  • Event logs
